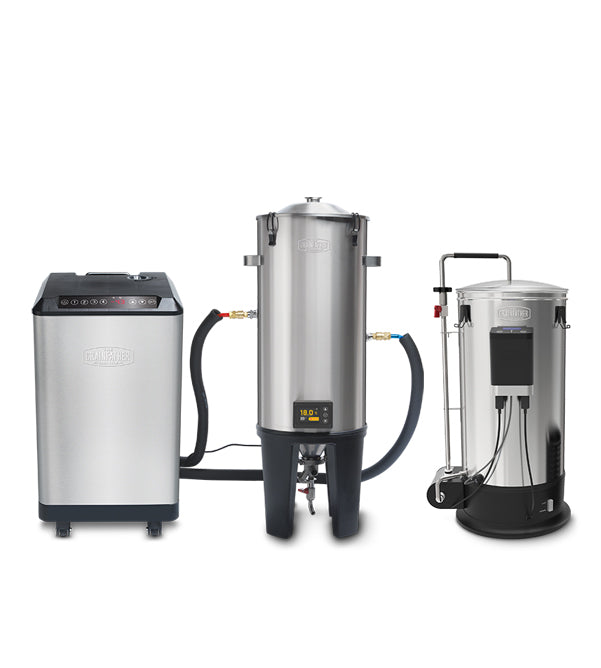

G30v3 Advanced Brewery Setup

G30v3 Brewing System

• 304 Grade stainless-steel body
• 220 - 240V
• 30 L Capacity
• Expandable grain basket to suit grain bills up to 9 kg
• A robust magnetic drive pump (6 W, 1800 RPM)
• Counter flow wort chiller which can cool wort to less than 20°C within approx. 20-30 minutes.
• Tempered glass lid for maximum durability, heating efficiencies and visibility during your brew day.
• Clips to easily convert your Grainfather into a home distillery with the Pot Still Attachment (sold separately) (add link to product page)
• Compatible with the Grainfather App

Required Specs for App:

iPhone/iPad:

• Hardware: iPhone 4S or higher.
• Software: iOS8 or higher, must have Bluetooth 4.0 or higher

Android:

• Hardware: Android 4.3 (API Level 18) or higher
• Software: Must have Bluetooth Low Energy (LE)/Bluetooth Smart

GF30 Conical Fermenter

• 304 Stainless-steel body (polished inner and brushed outer)
• 30 L (8 US Gal) capacity (volume markings on inner body up to 25 L (7 US Gal)
• 30 W, 12 V heating power
• 50Hz/60Hz power adapter frequency
• 8 cm (1.5"") ferrule on lid (for pressure transfer attachments)
• 5 cm (2"") ferrule on bottom of cone
• Dual valve tap with 110 mm (4.3”) inlet

GC4 Glycol Chiller

• LED display
• 6 L (1.5 US Gal) glycol tank
• 300 W
• 220 – 240 V, 50Hz
• 390W x 450D x 656H (mm)
• Weight: 28.3 kg (62 lbs)

Note: When you receive your GC4 Glycol Chiller, you will also need to fill it up with a propylene glycol mixture. Refer to the GGlycol Chiller instructions that are provided for mixing, filling, and pump priming information.

G30v3 Brewing System

• Counter Flow Wort Chiller

GF30 Conical Fermenter

• GF30 Conical Fermenter
• Fermenter Lid
• Rubber Bung
• Bubbler Airlock
• Cone Plug
• Cone Plug Seal
• 5 cm (2") Tri Clamp
• Power Adapter and Wall Plug
• 2 m (6.5 ft) M12 3-Pin Power Cord
• Dual Valve Tap
• GF30 Conical Fermenter Controller

GC4 Glycol Chiller

• Wall outlet power cord with plug
• 3L propylene glycol
• Cooling connection couplers x 2
• 2m insulated hoses x 2
• Glycol funnel
• Silicone tube for priming pump

Click here to download our Grainfather Connect Instructions

Click here to download our Grainfather Connect Control Box Instructions

Click here to download our Conical Fermenter instructions

Click here for approximate heating times and temperatures

Click here for Dual Valve Tap assembly instructions

IMPORTANT PLEASE READ: Make sure the chiller has been standing upright for 24 hours before turning it ON. Before using the Glycol Chiller, you must prime the pump by carefully following the instructions included with your purchase or online here.

Click here to download Glycol Chiller instructions.
