G40 Brewing System

Name: G40 Brewing System
Brand: Grainfather
SKU: 10767EU-RRPEUR
Price: 1.549 EUR
Availability: InStock

€1.549,00

€1.549,00 ~~€1.549,00~~

Shipping calculated at checkout.

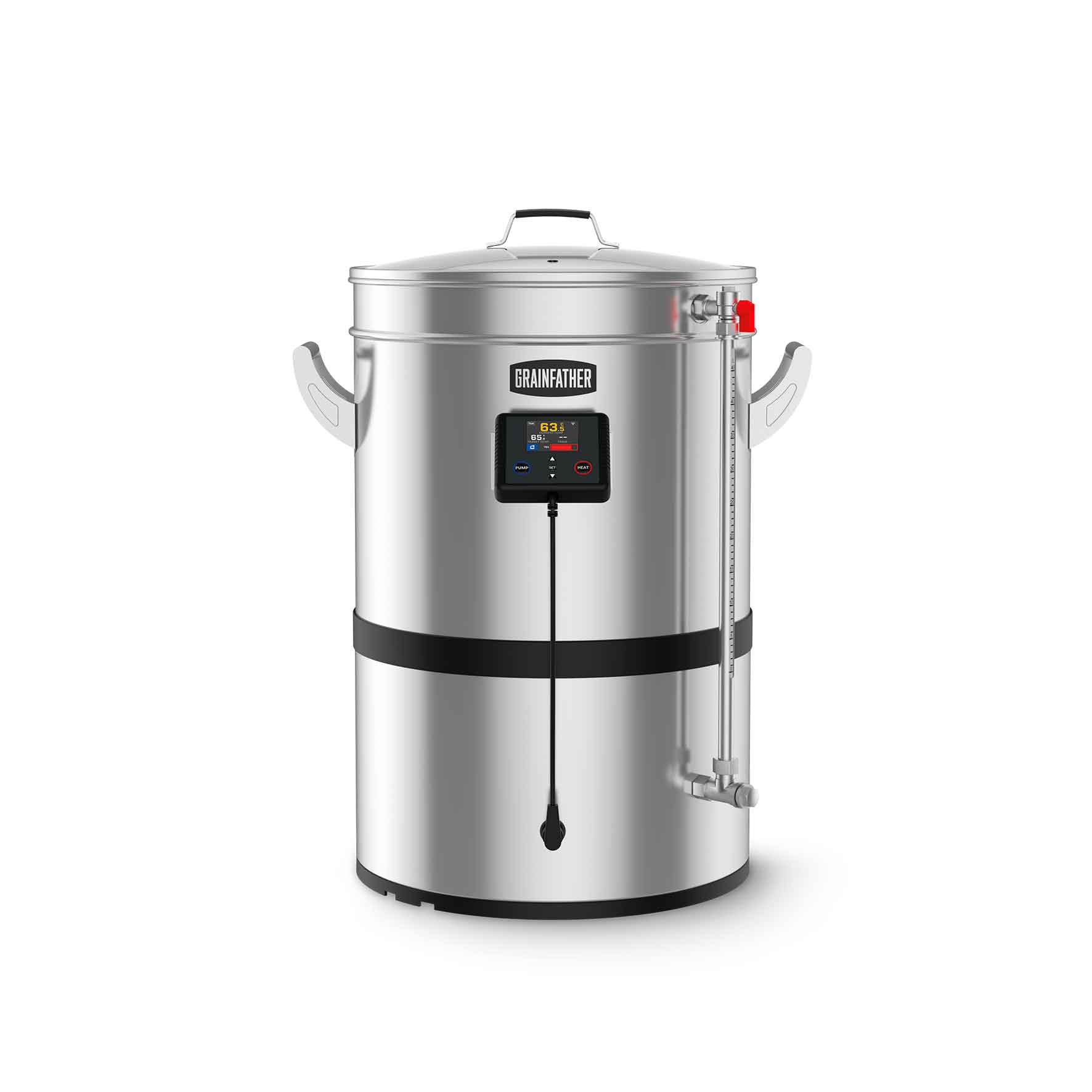

The Grainfather G40 is a brewhouse brewing system that handles the hot side of the all-grain brewing process. This unit has the ability to produce up to 40L (11 US Gal) of wort from one brew. This device can connect to your mobile device to the smart controller with built-in wireless control via the Grainfather App, for step-by-step guides to the brewing process and access to 1000s of recipes.

SKU: 10767EU-RRPEUR

Find a Stockist

Features

Sleek 304 grade stainless steel body
Heats wort evenly with large, surface mounted heating elements
Connect your mobile device to the smart wireless controller via the Grainfather App and manage your brew remotely
Conical base for maximum wort transfer
Efficient and sanitary brew transfer with the counterflow wort chiller
PID heating control for accurate temperature management during mashing
Quick and easy cleaning with CIP (clean in place) capability
Integrated sight glass for easy volume reading
Rolled edge mash plate and large hop filter to reduce blockages
Backed by a 3-year warranty

NZ/AU ONLY: The G40 comes in 10amp mode, but you can choose to upgrade it to 15amp mode if you wish to add more power to your brew. The 15amp cable is sold separately and a 15amp socket needs to be professionally installed into your homebrewery.

Specifications

SIZE:

Unit Size: 725mm x 555mm (h x w)
Packaged size: 730mm x 620mm x 575mm ( h x d x w)

WEIGHT:

Unit Weight: 29kg (64lb)
Packaged Weight: 35kg (76lb)

MAX PREBOIL VOLUME:

BATCH VOLUME:

Max: 40L
Min: 10L

GRAIN BILL:

Max: 12kg
Min: 3kg

STAINLESS STEEL THICKNESS:

Boiler: 0.8mm (0.03")
Grain basket: 0.8mm (0.03")

POWER:

EU: 3300W, 230V,50Hz/60Hz

CONNECTIVITY:

WiFi control

Counterflow Chiller:

Copper inner coil
Colour-coded hoses for inlet and outlet water.
Red and Blue hose specification: ID: 8mm
OD: 10mm 1.5m in length.
1m silicone hose- ID: 10mm ~ 3/8
OD: 11.5-12.5
Cooling performance- +5°C (+10°F) from cooling tap water temperature at a flow rate of 3L (0.8 US Gal) -
NOTE: The final wort temperature and cooling time will depend on the temperature of your local tap water.

PUMP SPEC:

Power: 22/25W

Heat rating: 105°C (221°F)

Max unit flow rate:

16/19L (4.2/5 US Gal) per min

Voltage: 230V

Frequency: 50/60Hz

What's Included

Grainfather G40
Wi-Fi controller
Counterflow wort chiller
Glass lid
Lifting bar
Grain basket
Recirculation hose
Grain plates
Hop filter
Fittings
Built-in pump
