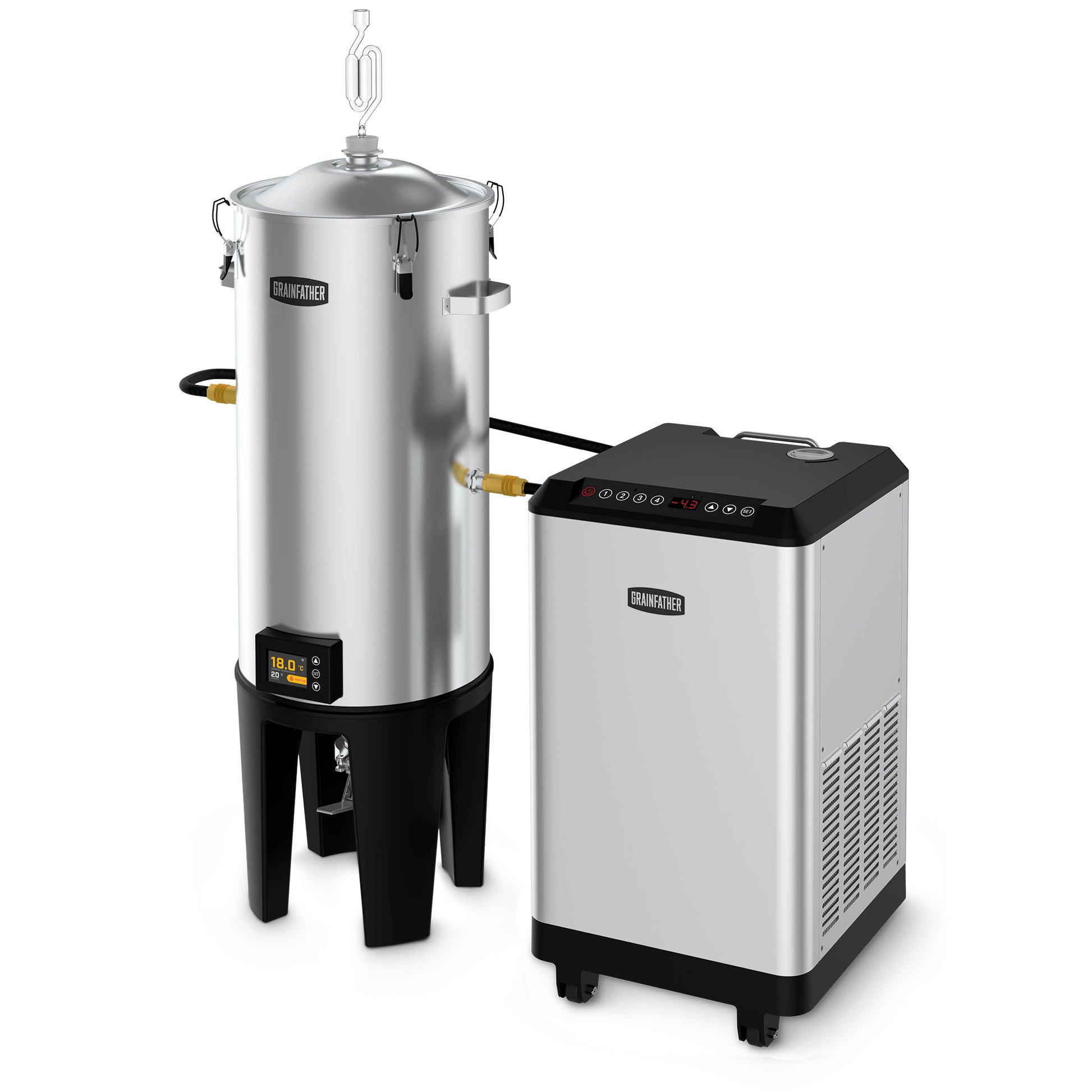

GF30 Advanced Cooling Setup

GF30 Conical Fermenter

• 304 Stainless-steel body (polished inner and brushed outer)
• 30 L (8 US Gal) capacity (volume markings on inner body up to 25 L (7 US Gal)
• 30 W, 12 V heating power
• 50Hz/60Hz power adapter frequency
• 8 cm (1.5") ferrule on lid (for pressure transfer attachments)
• 5 cm (2") ferrule on bottom of cone
• Dual valve tap with 110 mm (4.3”) inlet

GC4 Glycol Chiller

• LED display
• 6 L (1.5 US Gal) glycol tank
• 300 W
• 220 – 240 V, 50Hz
• 390W x 450D x 656H (mm)
• Weight: 28.3 kg (62 lbs)

GF30 Conical Fermenter

• GF30 Conical Fermenter
• Fermenter Lid
• Rubber Bung
• Airlock
• Cone Plug
• Cone Plug Seal
• 5 cm (2") Tri Clamp
• Power Adapter and Wall Plug
• 2 m (6.5 ft) M12 3-Pin Power Cord
• Dual Valve Tap
• GF30 Conical Fermenter Controller
• GF30 Conical Fermenter Coat (2 parts: body & cone jacket)

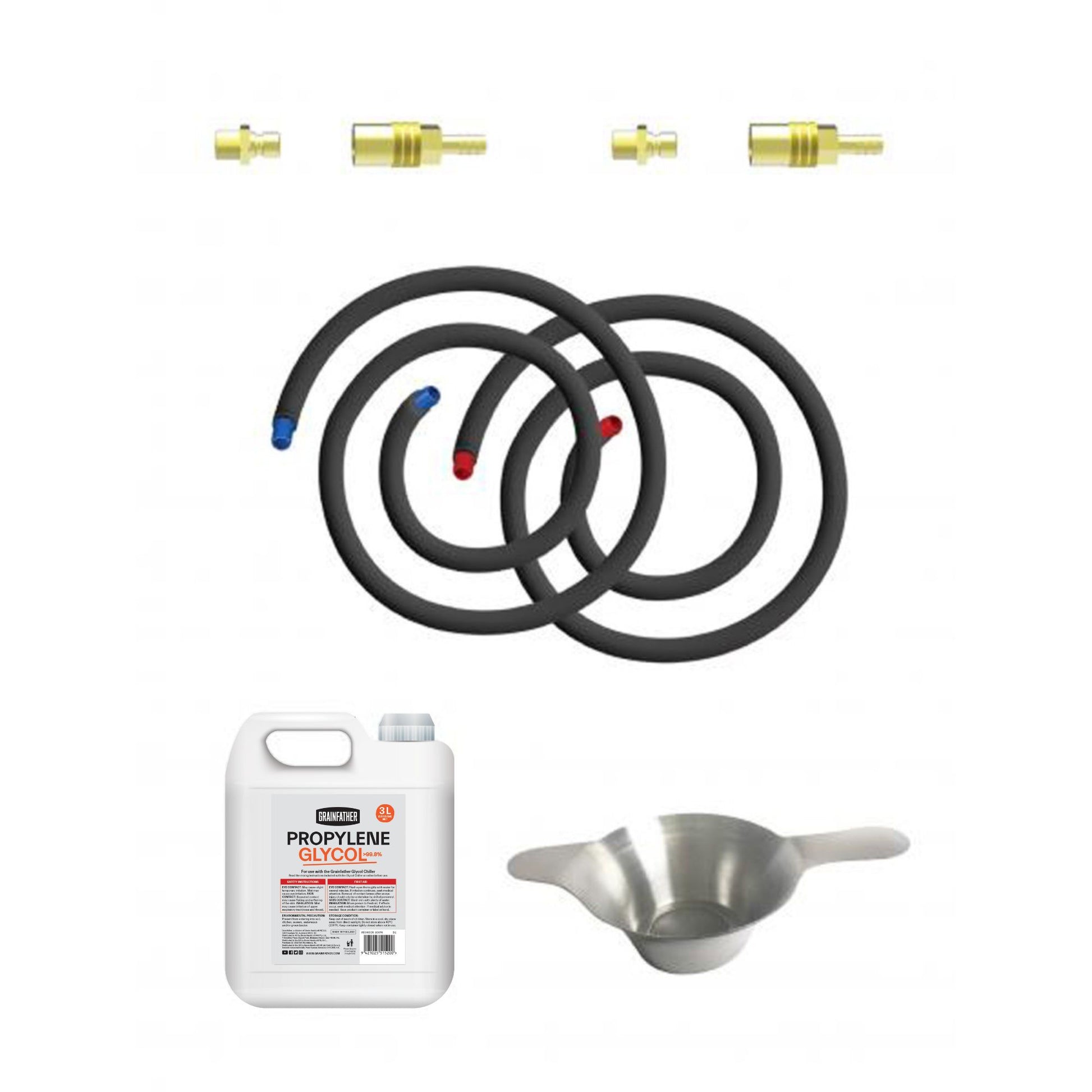

GC4 Glycol Chiller

• GC4 Glycol Chiller
• Wall outlet power cord with plug
• 2 x cooling connection couplers
• 2 x 2 m (6.5 ft) insulated hoses
• 1 x Glycol Funnel
• 1 x silicon tube for priming pump
• 1 x 3 L (3 US qt) propylene glycol

Note:When you receive your Glycol Chiller, you will also need to fill it up with a propylene glycol mixture. Refer to the Glycol Chiller instructions that are provided for mixing, filling, and pump priming information.

Click here to download our Conical Fermenter instructions

Click here for approximate heating times and temperatures

Click here for Dual Valve Tap assembly instructions

IMPORTANT PLEASE READ: Make sure the chiller has been standing upright for 24 hours before turning it ON. Before using the Glycol Chiller, you must prime the pump by carefully following the instructions included with your purchase or online here.

Click here to download Glycol Chiller instructions.
