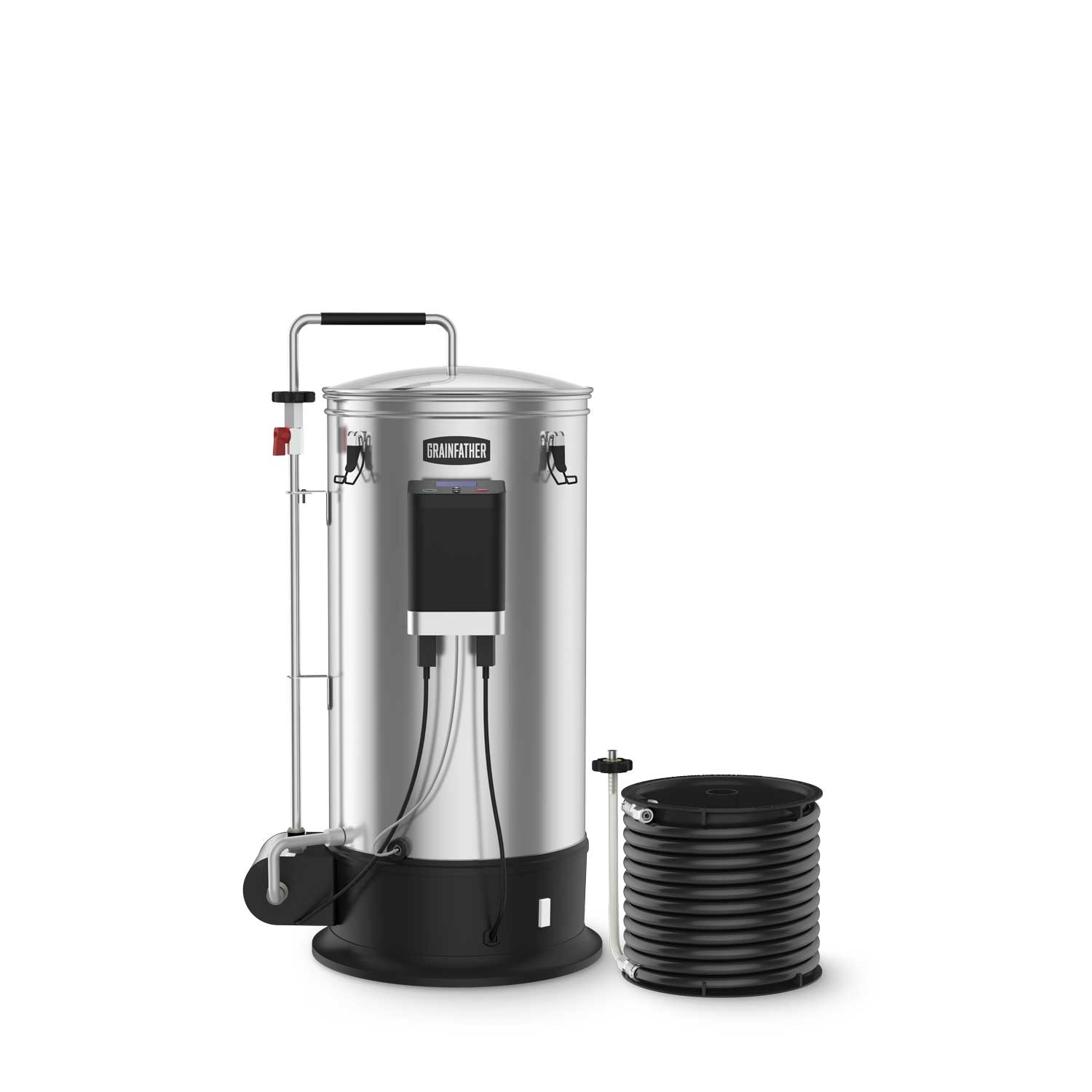

G30v3 + Counterflow Chiller

G30v3:

SIZE:

• Unit Size- 685 x 386mm (27 x 15’’)
• Packaged Size- 460 x 490 x 760 mm
• Diameter- Inside to Inside- 295mm. Outer lip to Outer Lip- 310 mm


WEIGHT:

• Unit Weight- 14.6kg (32lb)
• Packaged Weight- 21kg

STAINLESS STEEL THICKNESS:

• Boiler:0.5mm (0.02")
• Grain Basket 0.6mm (0.02")

MAX PREBOIL VOLUME:

• 30L (8 US Gal)

BATCH VOLUME:

• Max: 25L (7 US Gal)
• Min: 10L (3 US Gal)

GRAIN BILL:

• Max: 8kg (18lb)
• Min: 1.5kg (3.3lb)

*9kg (20lb) with top plate

POWER:

• EU - 2000W, 230V, 50Hz

CONNECTIVITY:

• Bluetooth Control only as standard
• Upgrade to Wi-Fi compatibility by pairing with our GCAST.

Counterflow Chiller:

• Copper inner coil
• Colour-coded hoses for inlet and outlet water.
• Red and Blue hose specification: ID: 8mm
  OD: 10mm 1.5m in length.
• 1m silicone hose- ID: 10mm ~ 3/8
  OD: 11.5-12.5
• Cooling performance- +5°C (+10°F) from cooling tap water temperature at a fl­ow rate of 3 L (0.8 US Gal) per min.


PUMP: NZ/AU/UK/EU

• Power: 6W
• Heat rating: 100°C
• Max unit ­ow rate: 11 L/min
• Voltage: 230V
• Frequency: 50Hz

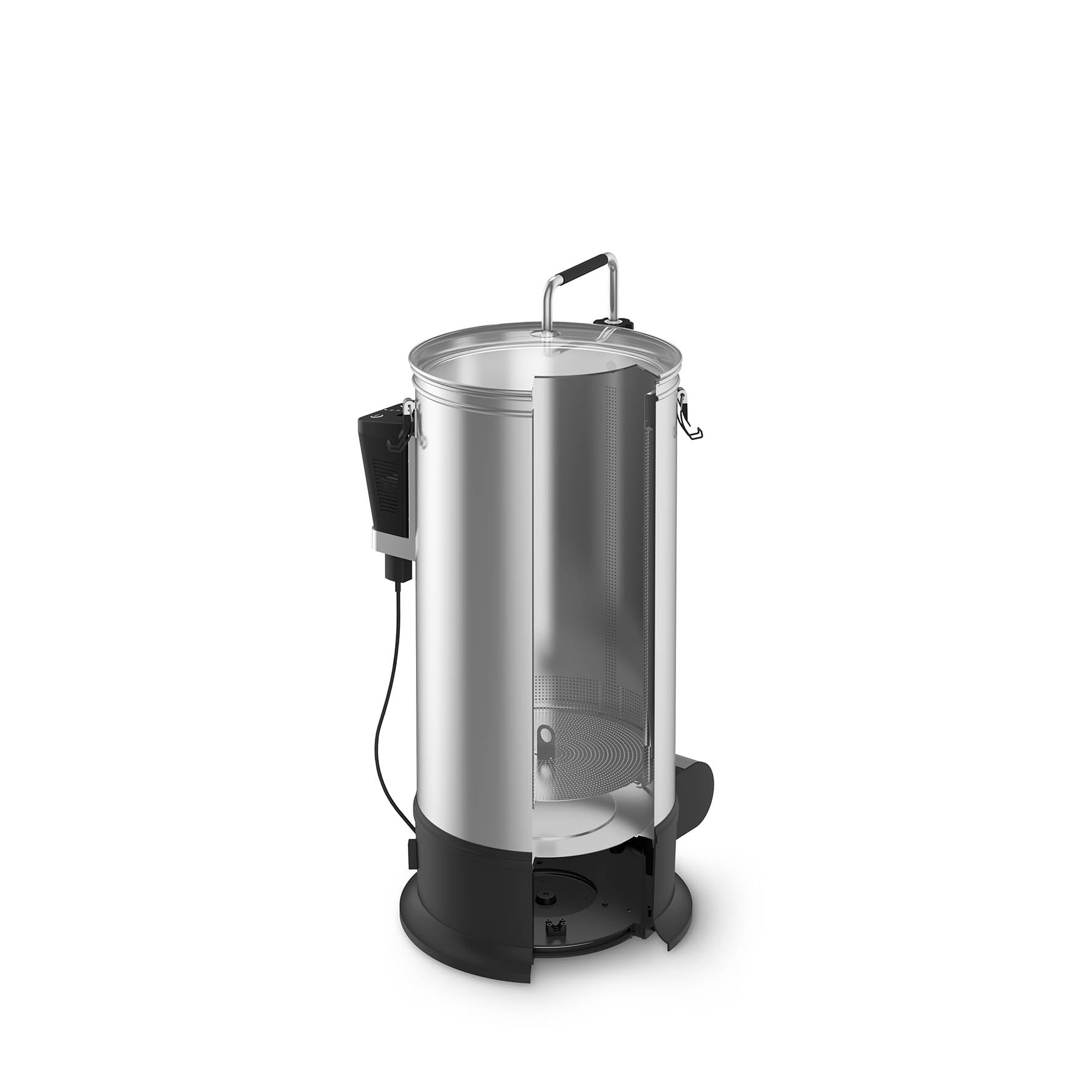

• Grainfather G30v3
• Bluetooth controller
• Counterflow Chiller

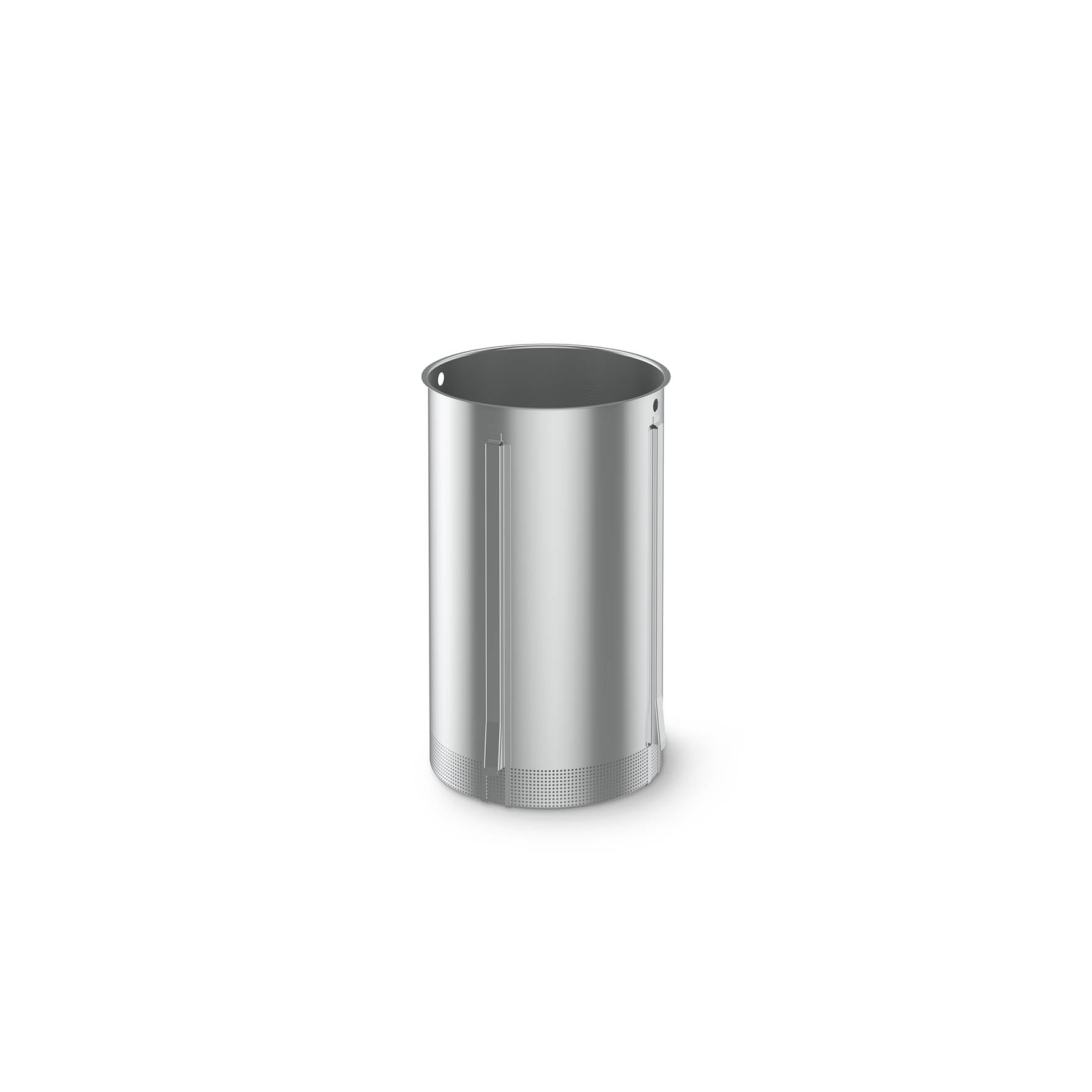

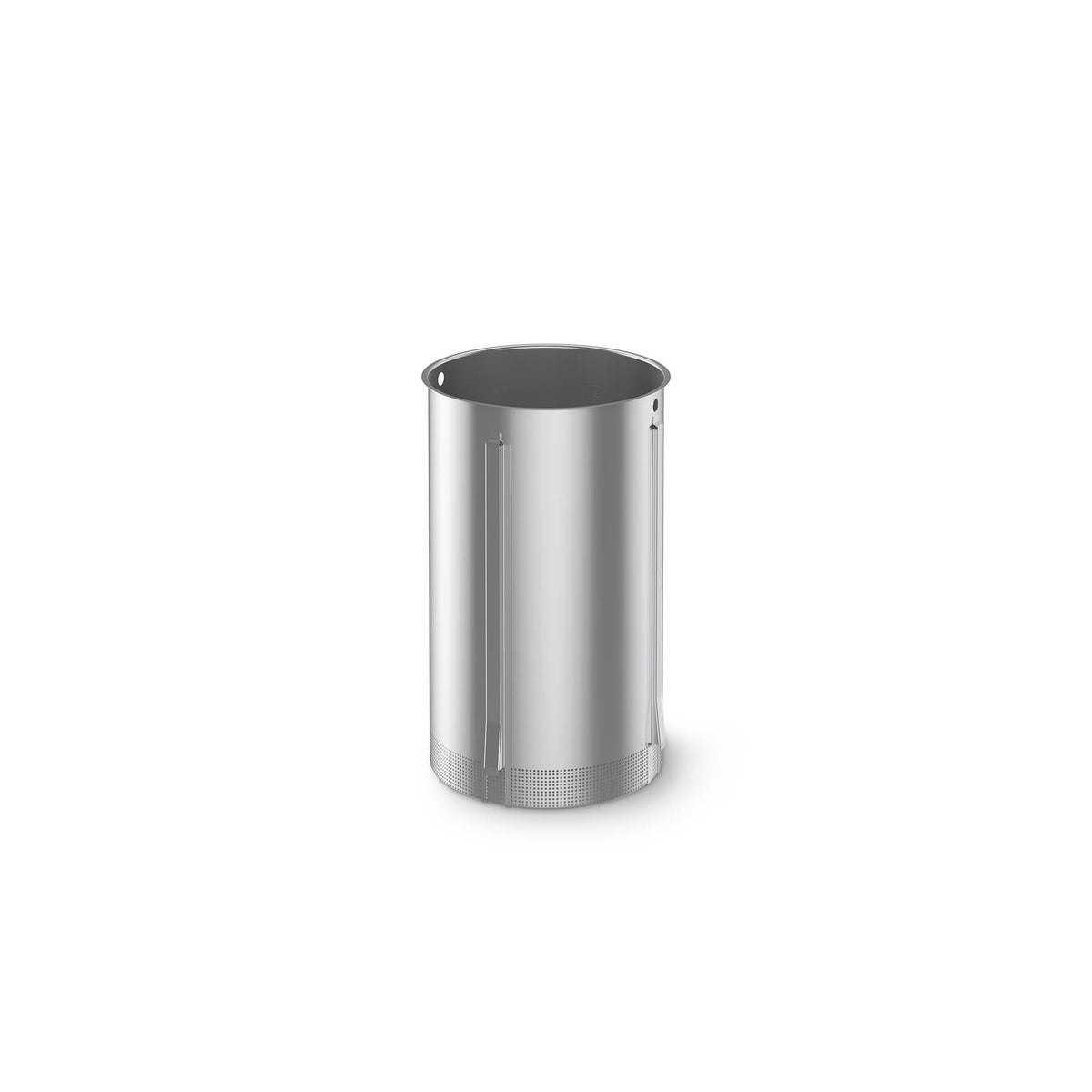

• NEW perforated grain basket
• Grain plate
• Lifting bar
• Glass lid
• Recirculation pipe
• Filter
• Hose fittings
• Built-in pump
